Details
Parameters
?

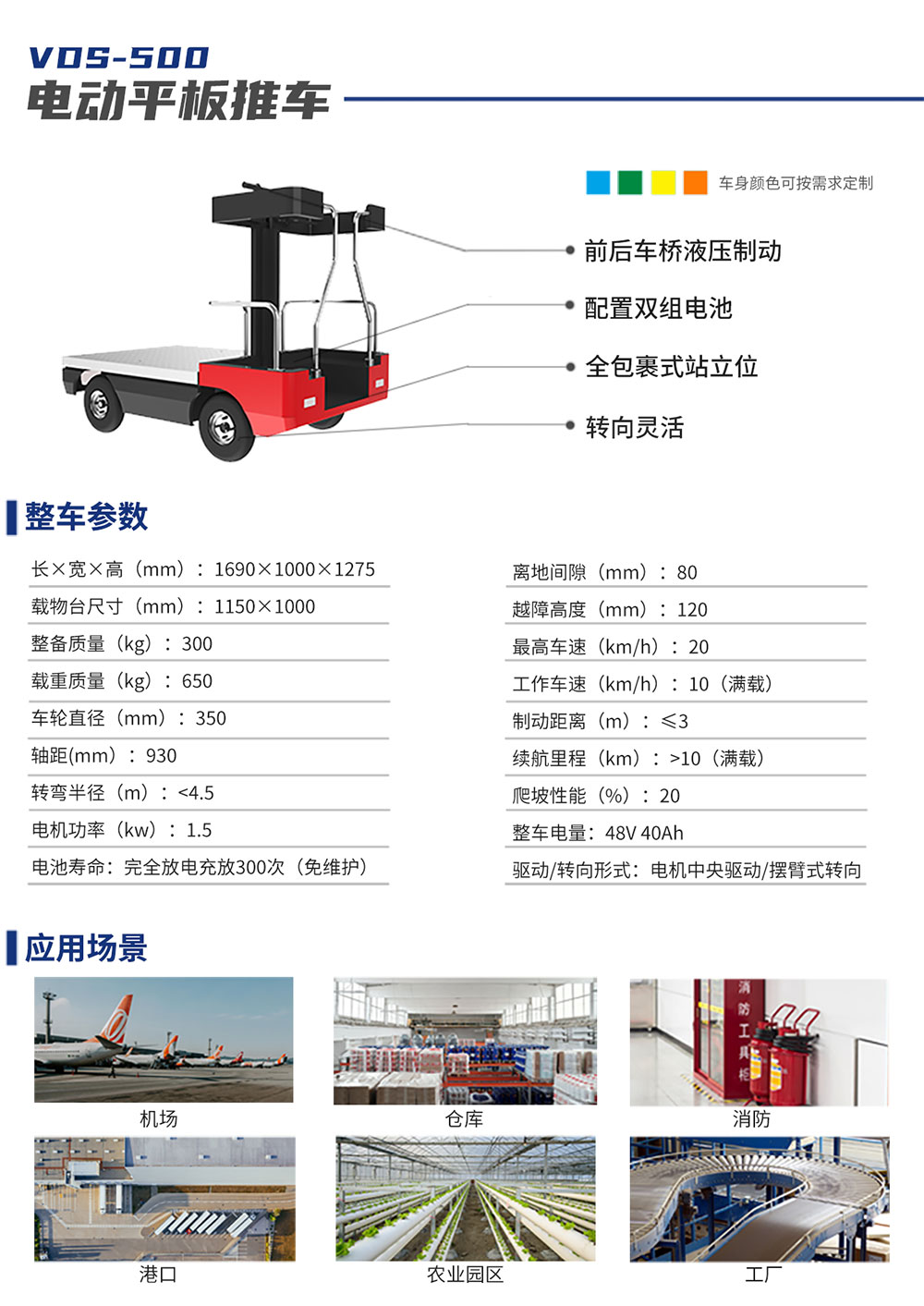

Technical parameters of Electric Flat Cart:
| Dimension (mm) | 1690×1000×1275 | Loading platform size (mm) | 1150×1000 |
| Weight (kg) | 300 | Load weight (kg) | 650 |
| Motor rated torque (Nm) | 20 | Wheel radius (mm) | 350 |
| Wheelbase (mm) | 930 | Turning radius (m) | < 4.5 |
| Turning (°) | >35 | Battery Life | Fully discharge and charge and discharge 300 times (maintenance free) |
| Ground clearance (mm) | 80 | Obstacle clearance height (mm) | 120 |
| Maximum speed (km/h) | 20（Whole device） | Working speed (km/h) | 10 (full load) |
| Braking distance (m) | ≤3（full load） | Range (km) | >10 (full load) |
| Climbing performance (%) | 20 (load) full | Braking performance | Satisfy 20% ramp braking |
| Drive | Electric motor | Steering | Swing arm steering |
